The direction to turn the plug depends on the bolt mechanism, not on the lock, but here are some general rules. Cheap padlocks will open if the plug is turned in either direction, so you can chose the direction which is best for the torque wrench. All padlocks made by the Master company can be opened in either direction. Padlocks made by Yale will only open if the plug is turned clockwise. The double plug Yale cylinder locks generally open by turning the bottom of the keyway (i.e., the flat edge of the key) away from the nearest doorframe. Single plug cylinder locks also follow this rule. See Figure 9.1. Locks built in to the doorknob usually open clockwise. Desk and filing cabinet locks also tend to open clockwise.
When you encounter a new kind of lock mechanism, try turning the plug in both
directions. In the correct direction, the plug will be stopped by the pins, so
the stop will feel mushy when you use heavy torque. In the wrong direction the
plug will be stopped by a metal tab, so the stop will feel solid.

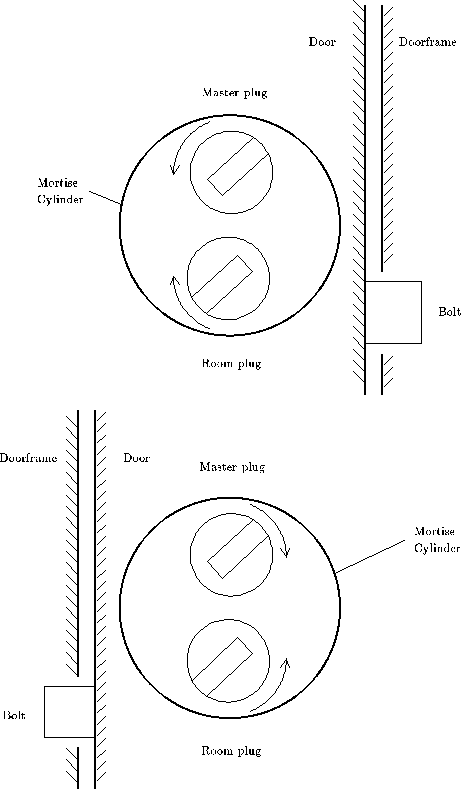

Figure 9.1:Direction to turn plug 9.2 How Far to Turn
The companion question to which way to turn a
lock is how far to turn it. Desk and filing cabinet locks generally open with
less than a quarter turn (90 degrees) of the plug. When opening a desk lock try
to avoid having the plug lock in the open position. Locks built into doorknobs
also tend to open with less than a quarter turn. Locks which are separate from
the doorknob tend to require a half turn to open. Deadbolt lock mechanisms can
require almost a full turn to open.
Turning a lock more than 180 degrees is difficult because the drivers enter
the bottom of the keyway. See section 9.11.
9.3 Gravity
Picking a lock that has the springs at the top is
different than picking one with the springs at the bottom. It should be obvious
how to tell the two apart. The nice feature of a lock with the springs at the
bottom is that gravity holds the key pins down once they set. With the set pins
out of the way, it is easy to find and manipulate the remaining unset pins. It
is also straight forward to test for the slight give of a correctly set pin.
When the springs are on top, gravity will pull the key pins down after the
driver pin catches at the sheer line. In this case, you can identify the set
pins by noticing that the key pin is easy to lift and that it does not feel
springy. Set pins also rattle as you draw the pick over them because they are
not being pushed down by the driver pin.
9.4 Pins Not Setting
If you scrub a lock and pins are not setting
even when you vary the torque, then some pin has false set and it is keeping the
rest of the pins from setting. Consider a lock whose pins prefer to set from
back to front. If the backmost pin false sets high or low (see Figure 9.2), then
the plug cannot rotate enough to allow the other pins to bind. It is hard to
recognize that a back pin has false set because the springiness of the front
pins makes it hard to sense the small give of a correctly set back pin. The main
symptom of this situation is that the other pins will not set unless a very
large torque is applied.
When you encounter this situation, release the torque and start over by
concentrating on the back pins. Try a light torque and moderate pressure, or
heavy torque and heavy pressure. Try to feel for the click that happens when a
pin reaches the sheer line and the plug rotates slightly. The click will be
easier to feel if you use a stiff torque wrench.
9.5 Elastic Deformation
The interesting events of lock picking
happen over distances measured in thousandths of an inch. Over such short
distances, metals behave like springs. Very little force is necessary to deflect
a piece metal over those distances, and when the force is removed, the metal
will spring back to its original position.
Deformation can be used to your advantage if you want to force several pins to bind at once. For example, picking a lock with pins that prefer to set from front to back is slow because the pinsset one at a time. This is particularly true if you only apply pressure as the pick is drawn out of the lock. Each pass of the pick will only set the frontmost pin that is binding. Numerous passes are required to set all the pins. If the preference for setting is not very strong (i.e., the axis of the plug holes is only slightly skewed from the plug's center line), then you can cause additional pins to bind by applying extra torque. Basically, the torque puts a twist in the plug that causes the front of the plug to be deflected further than the back of the plug. With light torque, the back of the plug stays in its initial position, but with medium to heavy torque, the front pin columns bend enough to allow the back of the plug to rotate and thus cause the back pins to bind. With the extra torque, a single stroke of the pick can set several pins, and the lock can be opened quickly. Too much torque causes its own problems.
When the torque is large, the front pins and plug holes can be deformed enough to prevent the pins from setting correctly. In particular, the first pin tends to false set low. Figure 9.2 shows how excess torque can deform the bottom of the driver pin and prevent the key pin from reaching the sheer line. This situation can be recognized by the lack of give in the first pin. Correctly set pins feel springy if they are pressed down slightly. A falsely set pin lacks this springiness. The solution is to press down hard on the firstpin. You may want to reduce the torque slightly, but if you reduce torque too much then other pins will unset as the first pin is being depressed.
It is also possible to deform the top of the key pin. The key pin is
scissored between the plug and the hull and stays fixed. When this happens, the
pin is said to be false set high.
9.6 Loose Plug
The plug is held into the hull by being wider at the
front and by having a cam on the back that is bigger than the hole drilled into
the hull. If the cam is not properly installed, the plug can move in and out of
the lock slightly. On the outward stroke of the pick, the plug will move
forward, and if you apply pressure on the inward stroke, the plug will be pushed
back.
The problem with a loose plug is that the driver pins tend to set on the back
of the plug holes rather than on the sides of the holes. When you push the plug
in, the drivers will unset. You can use this defect to your advantage by only
applying pressure on the outward or inward strokw of the pick. Alternatively,
you can use your finger or torque wrench to prevent the plug from moving
forward.

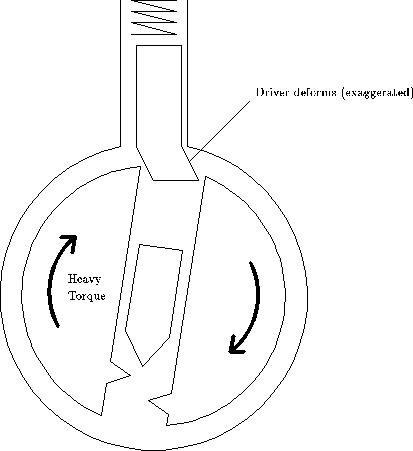

Figure 9.2: Driver pin false set by elastic deformation
9.7 Pin Diameter
When the pair of pins in a particular column have
different diameters, that column will react strangely to the pressure of the
pick.

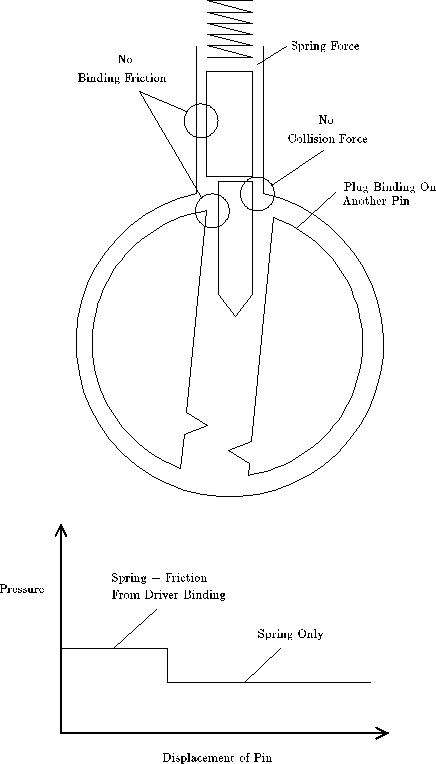

The top half of Figure 9.3 shows a pin column with a driver pin that has a larger diameter than the key pin. As the pins are lifted, the picking pressure is resisted by the binding friction and the spring force. Once the driver clears the sheer line, the plug rotates (until some other pin binds) and the only resistance to motion is the spring force. If the key pin is small enough and the plug did not rotate very far, the key pin can enter the hull without colliding with the edge of the hull. Some other pin is binding, so again the only resistance to motion is the spring force. This relationship is graphed in the bottom half of the Figure. Basically, the pins feel normal at first, but then the lock clicks and the pin becomes springy. The narrow key pin can be pushed all the way into the hull without loosing its springiness, but when the picking pressure is released, the key pin will fall back to its initial position while the large driver catches on the edge of the plug hole.
The problem with a large driver pin is that the key pin tends to get stuck in the hull when some other pin sets. Imagine that a neighboring pin sets and the plug rotates enough to bind the narrow key pin. If the pick was pressing down on the narrow key pin at the same time as it was pressing down on the pin that set, then the narrow key pin will be in the hull and it will get stuck there when the plug rotates.
The behavior of a large key pin is left as an exercise for the reader.
9.8 Beveled Holes and Rounded pins
Some lock manufacturers (e.g.,
Yale) bevel the edges of the plug holes and/or round off the ends of the key
pins. This tends to reduce the wear on the lock and it can both help and hinder
lock picking. You can recognize a lock with these features by the large give in

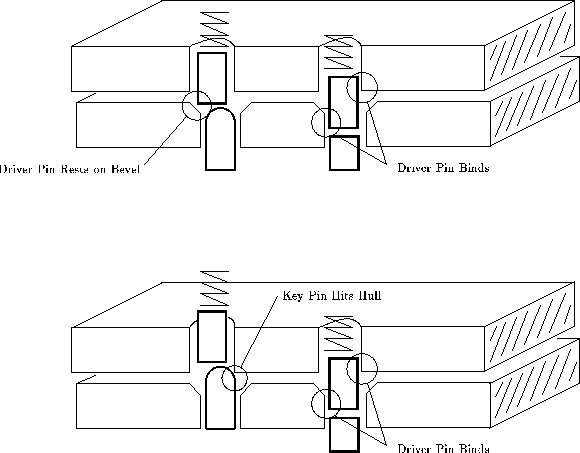

set pins. See Figure 9.4. That
is, the distance between the height at which the driver pin catches on the edge
of the plug hole and the height at which the key pin hits the hull is larger
(sometimes as large as a sixteenth of an inch) when the plug holes are beveled
or the pins are rounded. While the key pin is moving between those two heights,
the only resistance to motion will be the force of the spring. There won't be
any binding friction. This corresponds to the dip in the force graph shown in Figure 5.5.
A lock with beveled plug holes requires more scrubbing to open than a lock without beveled holes because the driver pins set on the bevel instead of setting on the top of the plug. The plug will not turn if one of the drivers is caught on a bevel. The key pin must be scrubbed again to push the driver pin up and off the bevel. The left driver pin in Figure 9.6a is set. The driver is resting on the bevel, and the bottom plate has moved enough to allow the right driver to bind. Figure 9.6b shows what happens after the right driver pin sets. The bottom plate slides further to the right and noe the left driver pin is scissored between the bevel and the top plate. It is caught on the bevel. To open the lock, the left driver pin must be pushed up above the bevel. Once that driver is free, the bottom plate can slide and the righ driver may bind on its bevel.
If you encounter a lock with beveled plug holes, and all the pins appear to
be set but the lock is not opening, you should reduce torque and continue
scrubbing over the pins. The reduced torque will make it easier to push the
drivers off the bevels. If pins unset when you reduce the torque, try increasing
the torque and the picking pressure. The problem with increasing the force is
that you may jam some key pins into the hull.
Figure 9.3: Driver pin wider than key pin Figure 9.4: Beveled plug holes and rounded key pins
9.9 Mushroom Driver Pins
A general trick that lock makers use to
make picking harder is to modify the shape of the driver pin. The most popular

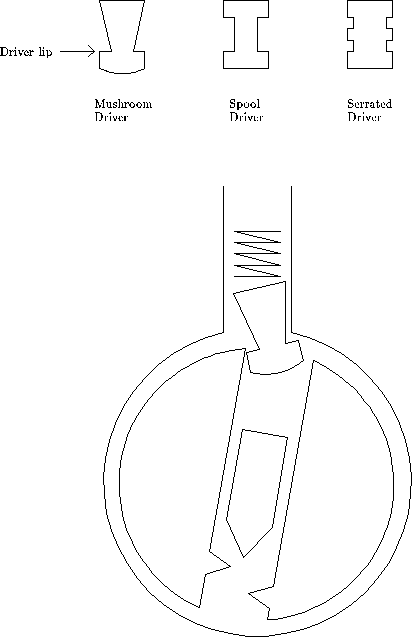

shapes are mushroom, spool and serrated, see Figure 9.7. The
purpose of these shapes is to cause the pins to false set low. These drivers
stop a picking technique called vibration picking (see section 9.12), but they only
slightly complicate scrubbing and one-pin-at-a-time picking (see chapter 4).

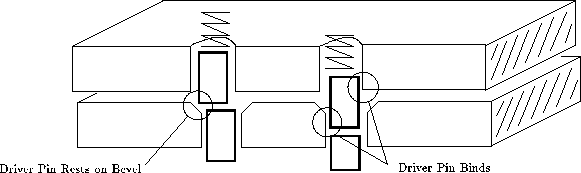

Figure 9.5: (a) Driver sets on bevel

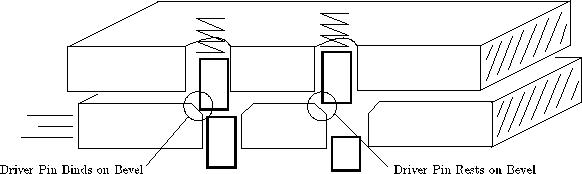

Figure 9.6: (a) Driver jams on bevel
If you pick a lock and the plug stops turning after a few degrees and none of the pins can be pushed up and further, then you known that the lock has modified drivers. Basically, the lip of the driver has caught at the sheer line. See the bottom of Figure 9.7. Mushroom and spool drivers are often found in Russwin locks, and locks that have several spacers for master keying.
You can identify the positions with mushroom drivers by applying a light torque and pushing up on each pin. The pins with mushroom drivers will exhibit a tendency to bring the plug back to the fully locked position. By pushing the key pin up you are pushing the flat top of the key pin against the tilted bottom of the mushroom driver. This causes thedriv er tostraigh ten up which in turn causes the plug to unrotate. You can use this motion to identify the columns that have mushroom drivers. Push those pins up to sheer line; even if you lose some of the other pins in the process they will be easier to re-pick than the pins with mushroom drivers. Eventually all the pins will be correctly set at the sheer line.
One way to identify all the positions with mushroom drivers is to use the flat of your pick to push all the pins up about halfway. This should put most of the drivers in their cockable position and you can feel for them.
To pick a lock with modified drivers, use a lighter torque and heavier pressure. You want to error on the side of pushing the key pins too far into the hull. In fact, another way to pick these locks is to use the flat side of your pick to push the pins up all the way, and apply very heavy torque to hold them there. Use a scrubbing action to vibrate the key pins while you slowly reduce the torque. Reducing the torque reduces the binding friction on the pins. The vibration and spring force cause the key pins to slide down to the sheer line.
The key to picking locks with modified drivers is recognizing incorrectly set
pins. Mushroom driver set on its lip will not have the springy give of a
correctly set driver. Practice recognizing the difference.
9.10 Master Keys
Many applications require keys that open only a
single lock and keys that open a group of locks. The keys that open a single
lock are called change keys and the keys that open multiple locks are
called master keys. To allow both the change key and the master key to
open the same lock, a locksmith adds an extra pin called a spacer to some
of the pin columns. See Figure 9.8. The
effect of the spacer is to create two gaps in the pin column that could be lined
up with the sheer line. Usually the change key aligns the top of the spacer with
the sheer line, and the master key aligns the bottom of the spacer with the
sheer line (the idea is to prevent people from filing down a change key to get a
master key). In either case the plug is free to rotate.
In general, spacers make a lock easier to pick. They increase the number of opportunities to set each pin, and they make it more likely that the lock can opened by setting the all the pins at about the same height. In most cases only two or three positions will have spacers. You can recognize a position with a spacer by the two clicks you feel when the pin is pushed down. If the spacer has a smaller diameter than the driver and key pins, then you will feel a wide springy region because the spacer will not bind as it passes through the sheer line. It is more common for the spacer to be larger than the driver pin. You can recognize this by an increase in friction when the spacer passes through the sheer line. Since the spacer is larger than the driver pin, it will also catch better on the plug. If you push the spacer further into the hull, you will feel a strong click when the bottom of the spacer clears the sheer line.
Thin spacers can cause serious problems. If you apply heavy torque and the
plug has beveled holes, the spacer can twist and jam at the sheer line. It is
also possible for the spacer to fall into the keyway if the plug is rotated 180
degrees. See section 9.11 for
the solution to this problem.

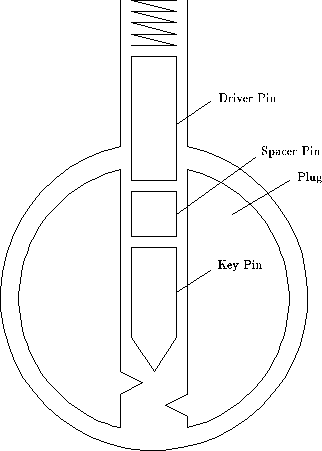

Figure 9.7: Mushroom, spool, and serrated driver pins Figure 9.8: Spacer pins for master keying Figure 9.10: Workings of a disk tumbler lock
9.11 Driver or Spacer Enters Keyway
Figure 9.9 shows
how a spacer or driver pin can enter the keyway when the plug is rotated 180
degrees. You can prevent this by placing the flat side of your pick in the
bottom of the keyway before you turn the plug too far. If a spacer or
driver does enter the keyway and prevent you from turning the plug, use the flat
side of you pick to push the spacer back into the hull. You may need to use the
torque wrench to relieve any sheer force that is binding the spacer or driver.
If that doesn't work try raking over the drivers with the pointed side of your
pick. If a spacer falls into the keyway completely, the only option is to remove
it. A hook shaped piece of spring steel works well for this, though a bent
paperclip will work just as well unless the spacer becomes wedged.

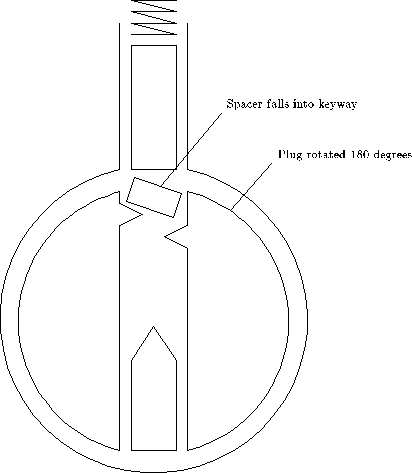

Figure 9.9: Spacer or driver can enter keyway 9.12 Vibration Picking
Vibration picking works by creating a large
gap between the key and driver pins. The underlying principle is familiar to
anyone who has played pool. When the queue ball strikes another ball squarely,
the queue ball stops and the other ball heads off with the same speed and
direction as the queue ball. Now imagine a device that kicks the tips of all the
key pins. The key pins would transfer their momentum to the driver pins which
would fly up into the hull. If you are applying a light torque when this
happens, the plug will rotate when all the driv ers are above the sheer line.
9.13 Disk Tumblers
The inexpensive locks found on desksuse metal

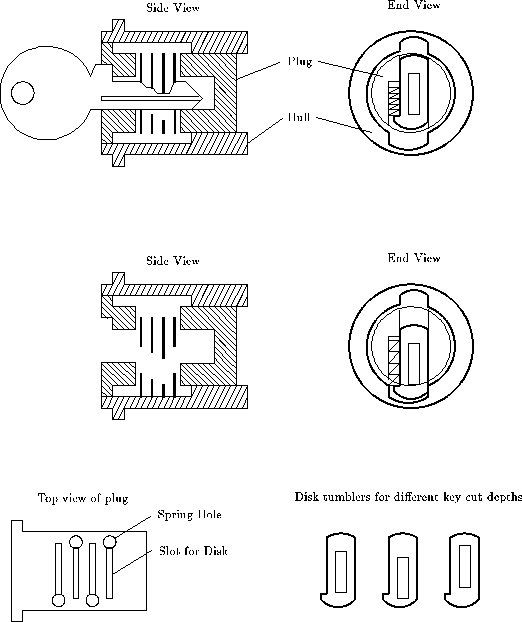

disks instead of pins. Figure 9.10 shows
the basic workings of these locks. The disks have the same outline but differ in
the placement of the rectangular cut. These locks are easy to pick with the
right tools. Because the disks are placed close together a half-round pick works
better than a half-diamond pick (see Figure A.1). You may
also need a torque wrench with a narrower head. Use moderate to heavy torque.
